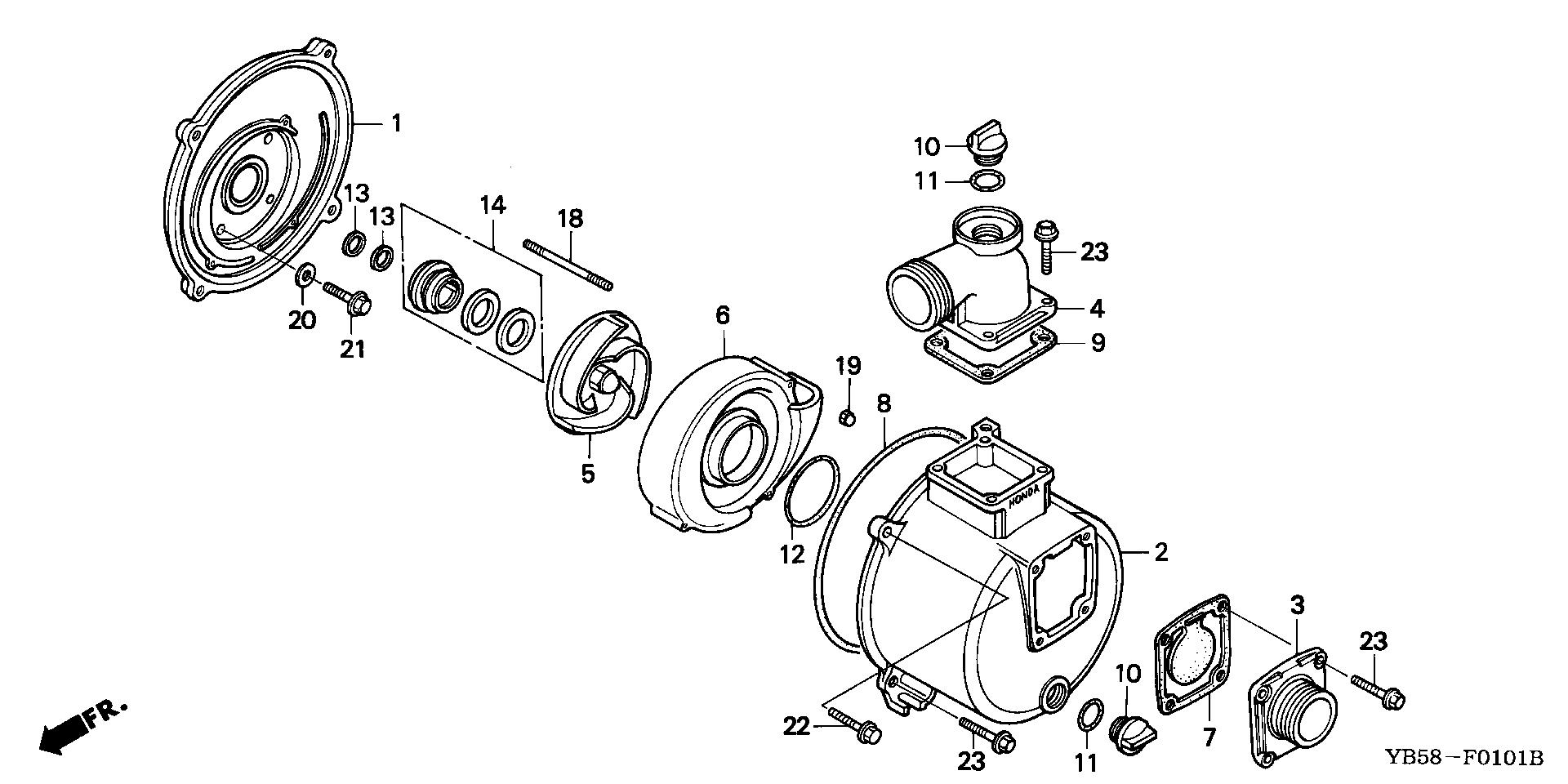

Water Pumps WB WB30 WB30XK1 C1 GC02-2000001-8669999 CASING (WB30XK1, WD30XK1) - All Seasons Outdoor Power Equipment

WARNING: California Prop 65 Information

Ref No

Part Number

Description

Serial Range

Qty

Price

Ref No
1

Part Number
78102-YG4-000

Description
COVER, CASING

Serial Range
1000001 - 9999999

Qty

Price
$30.28

Ref No
2

Part Number
78101-YB4-030

Description
CASING

Serial Range
1000001 - 9999999

Qty

Price
$443.94

Ref No
3

Part Number
78103-YB4-630

Description
PIPE, INLET (NPTF) (NOT AVAILABLE)

Serial Range
1000001 - 9999999

Ref No
4

Part Number
78104-YB4-631

Description
PIPE, OUTLET (NPTF)

Serial Range
1000001 - 9999999

Ref No
5

Part Number
78106-YB4-000

Description
IMPELLER

Serial Range
1000001 - 9999999

Qty

Price
$100.62

Ref No
6

Part Number
78107-YB4-K10

Description
CASE, VOLUTE

Serial Range
1000001 - 9999999

Qty

Price
$164.30

Ref No
7

Part Number
78110-YB4-000

Description
VALVE, IN.

Serial Range
1000001 - 9999999

Qty

Price
$38.84

Ref No
8

Part Number
78112-954-003

Description
RING, CASING SEAL

Serial Range
1000001 - 9999999

Qty

Price
$17.46

Ref No
9

Part Number
78114-YB4-000

Description
GASKET, OUTLET

Serial Range
1000001 - 9999999

Qty

Price
$15.10

Ref No
10

Part Number
78117-YB7-020

Description
CAP, FILLER

Serial Range
1000001 - 9999999

Qty

Price
$13.46

Ref No
11

Part Number
78118-YB0-003

Description
RING, SEAL (B)

Serial Range
1000001 - 9999999

Ref No
11

Part Number
78118-YB0-004

Description
RING, SEAL (B)

Serial Range
1000001 - 9999999

Qty

Price
$9.64

Ref No
12

Part Number
78118-YB4-004

Description
O-RING (71X5.7)

Serial Range
1000001 - 9999999

Qty

Price
$12.00

Ref No
13

Part Number
78122-YB3-000

Description
SHIM, ADJUSTER

Serial Range
1000001 - 9999999

Qty

Price
$4.72

Ref No
14

Part Number
78130-YB4-901

Description
SEAL, MECHANICAL

Serial Range
1000001 - 9999999

Qty

Price
$109.68

Ref No
18

Part Number
90043-YB4-000

Description
BOLT, STUD (6X50)

Serial Range
1000001 - 9999999

Qty

Price
$3.86

Ref No
19

Part Number
90281-YB4-000

Description
NUT, CAP (6MM)

Serial Range
1000001 - 9999999

Qty

Price
$2.26

Ref No
20

Part Number
90474-333-000

Description
WASHER, SEALING (8MM)

Serial Range
1000001 - 9999999

Qty

Price
$4.84

Ref No
21

Part Number
95701-08028-00

Description
BOLT, FLANGE (8X28)

Serial Range
1000001 - 9999999

Ref No
22

Part Number
95701-10032-00

Description
BOLT, FLANGE (10X32)

Serial Range
1000001 - 9999999

Qty

Price
$1.76

Ref No
22

Part Number
95701-10032-00

Description
BOLT, FLANGE (10X32)

Serial Range
1000001 - 9999999

Qty

Price
$1.76

Ref No
23

Part Number
95701-10032-00

Description
BOLT, FLANGE (10X32)

Serial Range
1000001 - 9999999

Qty

Price
$1.76

Ref No
23

Part Number
95701-10032-00

Description
BOLT, FLANGE (10X32)

Serial Range
1000001 - 9999999

Qty

Price
$1.76
